Features:

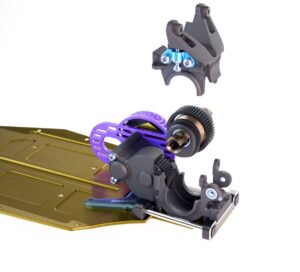

- A high quality printed gearbox with quick access for the TLR 22 5.0
- Motor position shifted to the front
- Gives you roll bar Options
- Enables you to use 4wd rear arm
What you don’t get, but need:
- Screws:
- (4x) M3x12 countersunk gearbox to chassis
- (2x) M3x8 countersunk gearbox to Chassis middle
- (3x) M3x8 countersunk for Motor mount
- (2x) M3x12 bottom for gearbox left to gearbox Right
- (1x) M3x6 bottom gearbox left to gearbox Right rear
- (4x) M3x12 bottom gearbox top to gearbox Bottom
- (4x) M3x12 bottom link mount to gearbox top (M3x14 M3x16 depending on how many washers you put there)
- Bearings (for the idler you need, and probably don’t already have: two pieces: 5x11x3)
- the idler gear (22 ball diff gear TLR 2953)
- If you want to run the roll bar:
- roll bar mount (you can use Xpress 11049 or any other roll bar mount for Di=3mm bearing; many touring cars use similar parts)
- Bearings: two pieces 3x6x2.5F (yes flange!)
- a roll bar (best start with 1.4mm, many Option from touring cars available and other buggies) with all the mounting (22x-4 parts recommended)
- THIS SET CONTAINS THE PLASTIC C-BLOCK
pictures show not included parts too!
